UT204+CLAMP METER

4,900.00

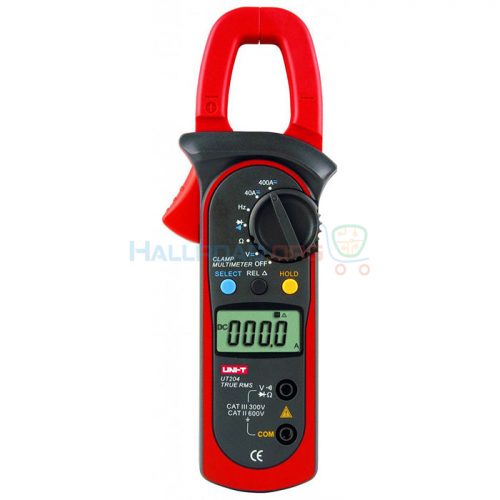

UT204+ 400-600A Digital Clamp Meter

UNI-T’s UT204 is a 400A auto ranged True RMS digital clamp meter. Non-linear signal can be precisely measured.
Compare

Description

Specifications
Model   UT204+
AC Current (A) 40A/400A ±(2.5%+5)
DC Current (A) 40A/400A  ±(2%+3)
AC Voltage (V) 4V/40V/400V/600V ±(1%+5)
DC Voltage (V) 400mV/4V/40V/400V/600V ±(0.8%+1)
Resistance (Ω) 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1%+2)
Frequency (Hz) 10Hz ~ 10MHz ±(0.1%+3)
Features
Display Count 3999
Auto Range
Jaw Capacity 28mm
True RMS
Duty Cycle 0.1%~99.9%
Diode
Auto Power Off
Continuity Buzzer
Data Hold
Relative Mode
Setup
Input Impedance for DCV Around 10MΩ
General Characteristics
Power 9V Battery (6F22)
LCD Size 35.6mm x18mm
Product Color Red and grey
Product Net Weight 260g
Product Size 208mm X 76mm X30mm
Standard Accessories Battery, Test Lead, Carrying Bag
Standard Individual Packing Gift Box, English Manual
