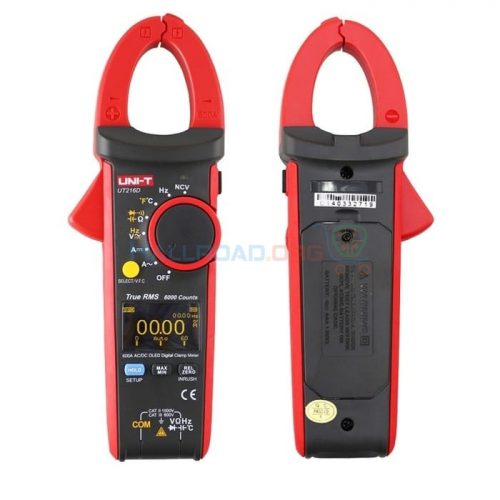

Description
Functions and properties:
• Voltage testing up to 750 V AC and 1000 V DC
• AC/DC current measurement up to 600 A
• Resistance measurement up to 60 mOhm
• Capacitance measurement up to 60 mF
• Frequency measurement up to 1 MHz
• Temperature measurement up to 1000°C
• Current clamp for conductors up to 30 mm in diameter
• Automatic measuring range selection
• TRMS measurement function (true root mean square)
• Diode test, continuity test
• Varied frequency (V.F.C.)
• Non-contact voltage testing
• Data hold, zero mode, relative value measurement, MIN/MAX
• Starting current measurement
• Integrated LCD display with backlighting
• Analogue bar graph
• LED work light
• Battery warning, automatic shut-off
• Overload protection
• Protection class CAT II 1000 V, CAT III 600 V
Technical data:
Basic accuracy: 0.1%
LC display: 38 x 24 mm, illuminated
Display range: 6,000 counts
Current measurement, AC/DC: 0 – 600A / ±2.5% + 5 dgt.
Voltage measurement, AC: 0 – 750V / ±1.2% + 5 dgt.
Voltage measurement, DC: 0 – 1000V / ±0.8% + 1 dgt.
Resistance measurement: 0 – 60 mOhm / ±1.0% + 2 dgt.
Capacity: 0 – 60 mF / ±4.0% + 5 dgt.
Frequency: 10 – 1MHz / ±0.1% + 4 dgt.
Temperature measurement: -40 … 1000°C / ±2.5% + 4 dgt.
Voltage supply: 3x AAA/micro batteries
Dimensions: 220 x 75 x 40mm / 232g
