Description

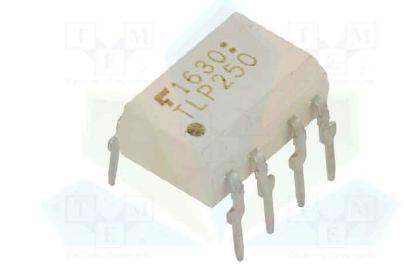

The TLP250 is 8-pin photocouplers designed exclusively for use in IGBT (isolated-gate bipolar transistor) drive applications. These photocouplers are capable of driving the gates of IGBTs and power MOSFETs.
SPECIFICATIONS
- Input threshold current: IF=5mA(max.)
- Supply current (ICC): 11mA(max.)
- Supply voltage (VCC): 10−35V
- Output current (IO): ±1.5A (max.)
- Switching time (tpLH/tpHL): 1.5μs(max.)
- Isolation voltage: 2500Vrms(min.)
- UL recognized: UL1577, file No.E67349
- Option (D4) type
- VDE approved: DIN VDE0884/06.92,certificate No.76823
- Maximum operating insulation voltage: 630VPK
- Highest permissible over voltage: 4000VPK
- Creepage distance: 6.4mm(min.)
- Clearance: 6.4mm(min.)
