Description
SSR solid state relay uses inflaming retarding engineering plastic shell, epoxy resin encapsulation and screw terminal connection. This series solid state relay has high structural strength, impact resistance and strong resistance to viability. The low input drive current makes it convenient to connect with computer terminal and various digital programmable interface circuit.
Features
Reliable SMT technology High ultra insulation resistance over 50M?/500V DC High dielectric over 2.5KV Low EMI/EFI & surge by zero cross trigger method High surge current over 410A/one cycle (60Hz) High surge voltage duration by snubber circuit
Specification

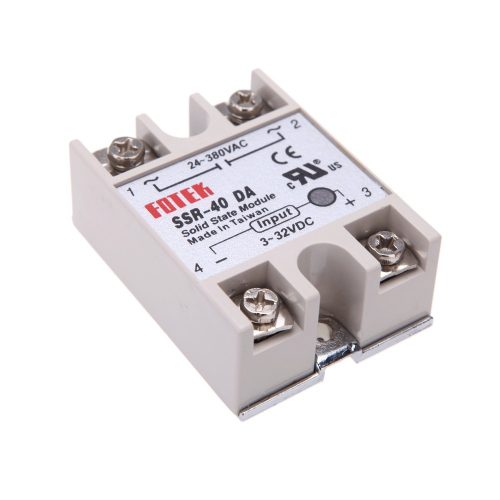

Model: SSR-40 DA Control Mode:DC-AC Load Voltage: 24-380VAC Load Current: 40A Control Voltage: 3-32VDC Control Current: DC3-25mA Working voltage: 250V On voltage: ?1V One-off Time: ?10ms Off leakage Current: ?2mA Installation Method: Bolt Fixed Working Indication: LED Solid State Relay Fotek SSR-40 DA
