Description

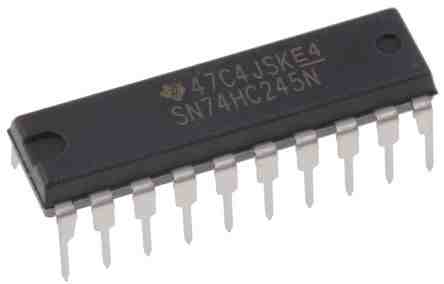

The SN74HC245N octal bus transceivers are designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements.The devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated. Features: Wide Operating Voltage Range of 2 V to 6 V High-Current 3-State Outputs Drive Bus Lines buses. The control-function implementation minimizes Low Power Consumption, 80-μA Max ICC The devices allow data transmission from the A bus Typical tpd = 12 ns to the B bus or from the B bus to the A bus, ±6-mA Output Drive at 5 V depending on the logic level at the direction-control On Products Compliant to MIL-PRF-38535, effectively isolated. Applications: Octal bus transceiver DataSheet: SN74HC245N Datasheet Package Includes: 1x SN74HC245N IC
